Used 2018 Jayco Jay Flight SLX 224BH

Travel Trailer

Stock #5062A

Nanoose Bay, BC

1 of 6

Sleeps 8
Bunkhouse

Outdoor Kitchen

27ft Long
4,435 lbs
Havana

See All Specs

Specifications

Sleeps	8	Length	26 ft 11 in
Ext Width	8 ft	Ext Height	10 ft 2 in
Int Height	6 ft 9 in	Interior Color	Havana
Hitch Weight	455 lbs	GVWR	5500 lbs
Dry Weight	4435 lbs	Cargo Capacity	1065 lbs
Fresh Water Capacity	42 gals	Grey Water Capacity	39 gals
Black Water Capacity	39 gals	Tire Size	ST205/75R14 D
Furnace BTU	20000 btu	Number Of Bunks	2
Available Beds	Queen	Cooktop Burners	3
Number of Awnings	1	Axle Weight	3980 lbs
Water Heater Capacity	6 gal	Awning Info	13'
Axle Count	2	Shower Type	Standard
VIN	1UJBJ0BM0J75N0216

Description

Hit the road with this Jayco Jay Flight SLX travel trailer in tow! With model 224BH you will enjoy camping with all of the conveniences that keep things comfortable and fun. There is sleeping for eight, plus complete kitchen and bath amenities as well. In fact, you can cook either inside or out depending on the weather or your mood, as this unit features an outdoor kitchen too!

Before heading inside, check out the outdoor space that can be created with the 13' awning provided. There is a nice pass-through storage compartment up front which is great for all of your camping equipment, or even a few fishing poles! The outside kitchen makes it easy to handle cook-out meals, as well as to keep a few drinks or condiments handy. This space includes a small refrigerator, a pull-out two burner cook-top, plus a single sink.

Step inside and notice the front bedroom area to your right. This can be separated from the rest of the unit with a curtain that can be pulled for more privacy at night. There is more sleeping in the rear left corner where there is a set of double bed bunks. You will also find a privacy curtain there as well.

You can easily cook meals inside with the amenities provided. Here you will find a double sink, a three burner range including an overhead microwave oven, plus a refrigerator for your perishables. There is also a pantry opposite the fridge, next to your dining space for dry and canned food items, or a few towels.

A booth dinette creates seating at mealtime, or when you are just hanging out inside. Notice the overhead cabinets above the dinette allowing you plenty of space for tucking things out of sight. The dinette can also be transformed into added sleeping space for a child or small adult.

In the rear right corner you will find a complete bath including a shower, toilet, and corner vanity with sink. This will definitely make your time spent camping very convenient and comfortable.

Choose this Jay Flight SLX travel trailer for your next camping adventure!

Features

Standard Features

Customer Value Package (Mandatory)

6-gallon gas water heater (7-foot-wide models only)
6-gallon gas DSI water heater (8-foot-wide models only)
Bathroom skylight
Front diamond plate
Pleated window shades
Power awning
Range hood
Stabilizer jacks with sand pads (2 in 7-foot-wide models, 4 in 8-foot-wide models)
Water heater bypass

Baja Edition Package (7' Wide, Idaho-Built Units Only)

20-gallon freshwater tank (145RB, 154BH)
30-gallon freshwater tank (174BH, 185RB, 195RB)
30-lb. propane bottle
Black diamond-plate sidewall skirt
Triple-tread step
Enclosed underbelly
Flipped axle
Off-road tires with black rims
Stabilizer jacks (4)

Baja Edition Package (8' Wide, Idaho-Built Units Only)

16” off road tires
2nd fresh water tank, 80-gallon capacity
Enclosed underbelly
Triple-tread step
Flipped axle
Solar prep

Standard Exterior Equipment

.024 mesa crimp exterior aluminum
I-class cambered structural steel I-beams (8-foot-wide models only)
3-inch, cambered, steel box tube frame
Fully integrated A-frame
5⁄8-inch tongue-and-groove plywood floor decking (8-foot-wide models only)
Magnum Truss Roof System with seamless DiFlex II material
2-sided reflective foil insulation in flush-floor slideout floors (8-foot-wide models only)
Electric slideouts with enclosed gear system (8-foot-wide slideout models only)
30-inch x 72-inch main entrance door (8-foot-wide models only)
Entrance doors and baggage doors all keyed alike
Amber patio light
13,500-BTU roof-mounted A/C (8-foot-wide models only)
Clamp-ringed, safety-glass windows with automotive gasket seals
Radial tires with galvanized steel, impact-resistant wheel wells
Keyed Alike radius-cornered entrance and baggage doors
Double-wide corner mold extrusions
Aerodynamic front profile
Front window with integrated rock guard (7-foot-wide models only)
30-amp service
20-pound propane bottle(s) (1 on 7-foot-wide, 2 on 8-foot-wide models)
Exterior speakers
Spare tire with cover
G20 dark-tint windows
Outside shower (8’ wide models only)

Standard Interior Equipment

81-inch ceiling height (8-foot-wide models only)
Screwed-and-glued cabinetry
Mission-style maple cabinet doors
Wardrobe/pantry storage
Ball-bearing drawer guides throughout, 75-pound capacity with full extension
Laminate countertops with T-mold edging
Acrylic sink (7-foot-wide models only)
Large 60/40 acrylic kitchen sink (8-foot-wide models only)
Brushed nickel faucets
2-burner range (7-foot-wide models only)
3-burner range with 9,000-BTU Super Burner and piezo igniter (8-foot-wide models only)
3-cubic-foot refrigerator with temperature controls (7-foot-wide models only)
6-cubic-foot Norcold refrigerator with temperature controls (8-foot-wide models only)
Oven (8-foot-wide models only)
Microwave oven
High-efficiency Atwood furnace
Wall-mounted 8,000-BTU A/C (7-foot-wide models only)
Jayco-made window treatments
J-Steel jackknife sofa
Indoor/outdoor dinette table (select 7-foot-wide models only)
Premium multimedia sound system with MP3/iPod input jacks, and Bluetooth connectivity
Plywood bed platforms
DiamondFlor vinyl flooring
Marine toilet with foot-flush
Tub surround (8-foot-wide models only)
Shower curtain with curved shower track (select models)
Wood-trimmed mirror in bathroom
Queen Denver mattress (n/a on some 7-foot-wide models)
Under-bed storage on main/queen beds
300-pound-rated bunk beds (select models)
600-pound-rated bunk beds (double bunks in 8-foot-wide models only)
Privacy curtains in bunk areas (select 8-foot-wide models only)
4-inch Denver Mattress bunk mats (select models)
Smoke-glass cabinet inserts (select 8’ wide models only)

Options

Canadian Standards
Customer Value Package (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW) SLX: 6 Gal Gas DSI Water Heater, Bath Skylight, Front Diamond Plate, Power Awning, Pleated Window Shades, Range Hood, (4) Stabilizer Jacks, Water Heater Bypass
15,000 BTU A/C (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW)
Chill "N" Stor (245RLSW)
Baja Edition (Idaho Build Units Only) (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW) (2) 30 lb. LP Bottles, 16" Off Road Tires w/Black Rims, 2nd Fresh Water Tank (80 Gallon Total Capacity), Enclosed Underbelly, Flip Axle and Triple Step, Solar Prep (32BDSW, 267BHSW, 287BHSW, and 265RLSW only), Diamond Plate Radius Skirt (32BDSW, 267BHSW, 287BHSW, and 265RLSW only)
Underbelly Enclosed (Included w/Baja Edition Option) (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW)
Bedspread (212QBW, 242BHSW, 245RLSW, 264BHW, 265RLSW, 267BHSW, 284BHSW, 287BHSW, 32BDSW)
Customer Value Package (145RB, 154BH, 174BH, 175RD, 195RB) - 6 Gal Gas Water Heater, Bath Skylight, Front Diamond Plate, Power Awning, Pleated Window Shades, Range Hood, (2) Stabilizer Jacks, Water Heater Bypass
Roof Mounted 13,500 Air Conditioner (145RB, 154BH, 174BH, 175RD, 195RB)
Baja Edition (Idaho Built Units Only) (145RB, 154BH, 174BH, 175RD, 195RB) - 30 lb. LP Bottle, Large Fresh Water Tank (20 Gallon on 145RB, 154BH, 30 Gallon on 195RB, 174BH, 175RD), Flip Axle, Off Road Tires w/Black Rims, Enclosed Underbelly, Double Step, (4) Stab Jacks and Black Diamond Plate Sidewall Skirt
Queen Bedspread (195RB)

See us for a complete list of features and available options!

All features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Will Definitely Be Back
Great selection, and pricing aside, there are some top notch professionals at Big Boy's Toys. Really enjoyed meeting Garry, our whole family will definitely be back!

Everett
Awesome Parts Department
I recently met Jeremy in the parts department over a water heater issue I was trying to solve myself. He was very knowledgeable and helpful and despite there policy of not accepting returns on electrical components he allowed me to return a component that was very pricey without any hassle. I will say ... More »

Patrick
Great RV Dealer
Just bought my dad a unit from here. They helped with everything and trained my aging father how to maintain it. Good place to deal with

D'Angelo

We are here to help, call us at
800-492-2869 or Contact Us

We are here to help!

800-492-2869
Contact Us
Contact Sales

Big Boy Toys is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @800-492-2869 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2018 Jayco Jay Flight SLX 224BH

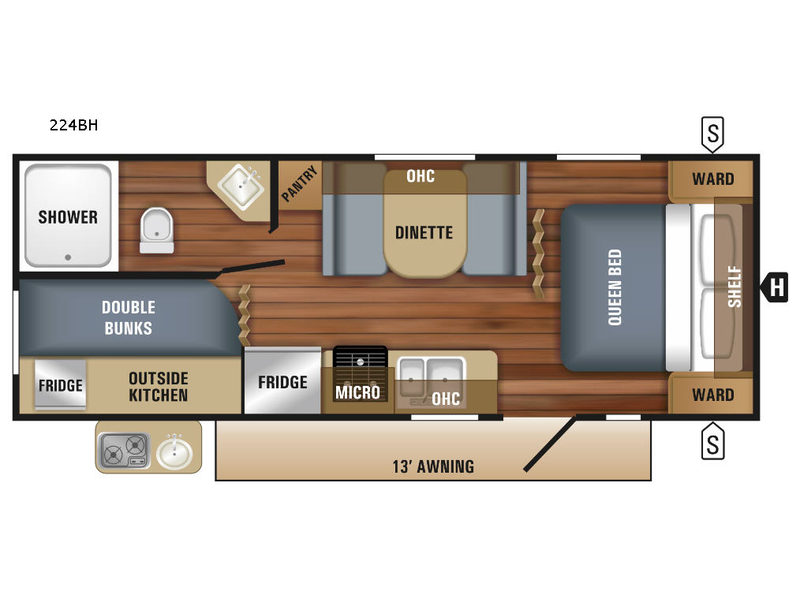

224BH Floorplan
